Knife Angle Setter Tormek

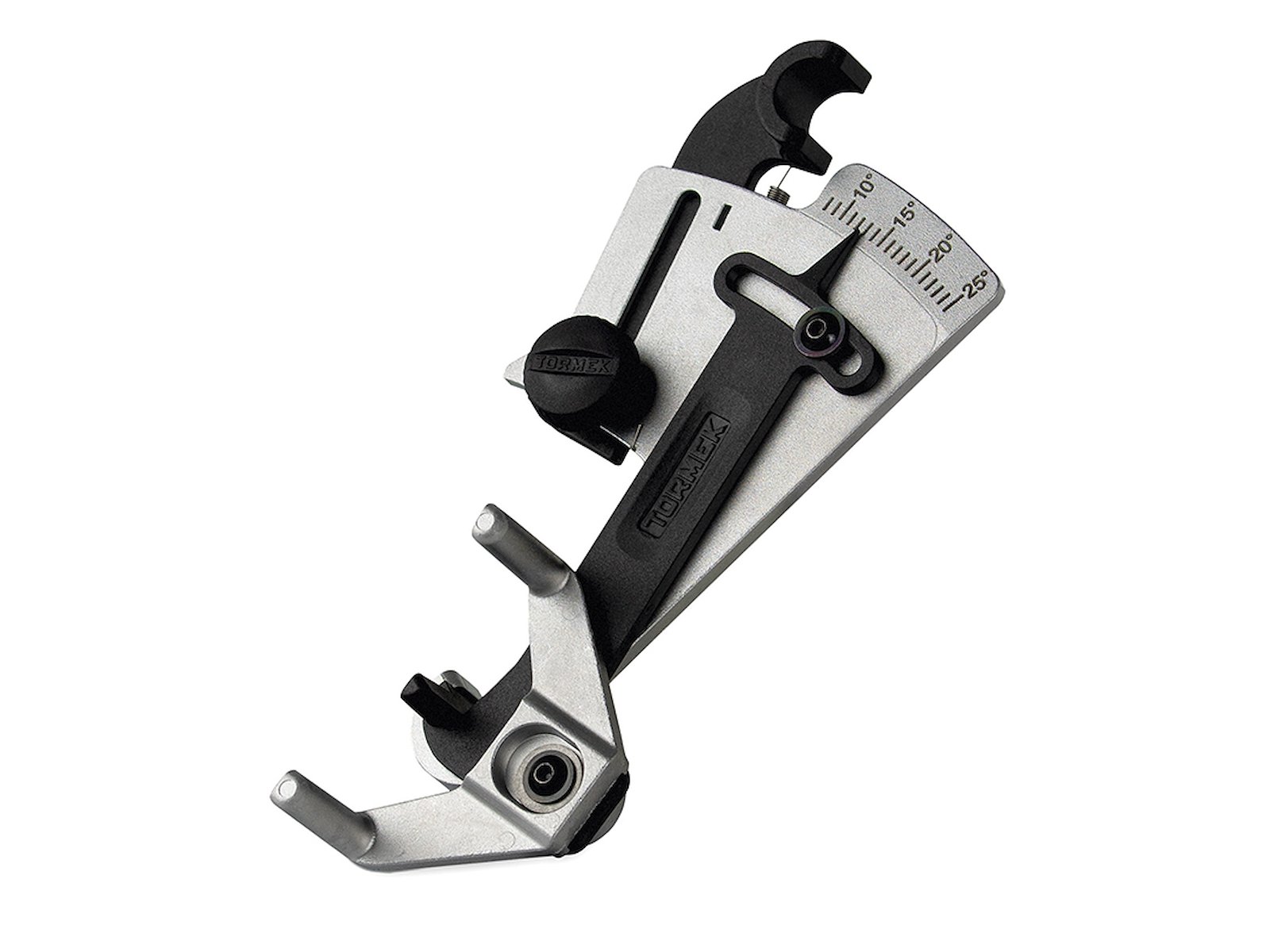

Tormek KS-123 knife angle setter

The Tormek KS-123 knife angle setter makes it easy to set the precise sharpening angle on virtually any type of knife. With three simple steps you can achieve an accurate and repeatable sharpening result, whether the blade is straight or tapered. The angle setter fits all Tormek machines with a universal support.

Highlights

• Set the precise sharpening angle for any type of knife
• Easy to use – three steps from start to the correct angle
• Self-adjusting to the grinding wheel's diameter
• Works with all Tormek knife jigs
• Compatible with Tormek T-8, T-4 and older models



Precise and flexible sharpening

The KS-123 angle setter allows you to dial in the exact sharpening angle from 8 to 25 degrees per side. This gives you the flexibility to adapt the edge to different types of knives – from chef's knives to hunting and hobby knives. Because the angle is measured using the tip of the blade as a reference, the blade's thickness or taper does not affect the final angle.

Simple to use in three steps

The patented Tormek KS-123 is designed to make the process as straightforward as possible. Simply:

• Clip the angle setter onto the universal support
• Adjust for the blade's projection in the jig
• Raise or lower the universal support until the indicator shows the desired angle

Once these steps are complete, your machine is ready to sharpen the knife to a precise and repeatable angle.

Self-adjusting and compatible with all Tormek machines

The KS-123 automatically adjusts to the diameter of your grinding wheel, meaning it always delivers the correct angle – even after extended use when the wheel may have reduced slightly in size. It is compatible with all Tormek models fitted with a universal support, including the Tormek T-8, T-4 and earlier versions.

Materials and construction

The angle setter is made from die-cast zinc and durable composite material, ensuring stability and a long service life. It comes fully assembled and is ready to use straight from the box.

Technical specifications

• Angle range: 8–25° per side
• Material: Die-cast zinc and composite
• Colour: Grey/black
• Weight: 0.15 kg (without packaging)
• Min. blade height: 12 mm
• Max. blade height: 80 mm
• Compatibility: Tormek T-8, T-4 and older models with universal support



Frequently asked questions

How does the KS-123 angle setter work?
It clips onto the universal support of the Tormek machine and is easily adjusted to match the blade's projection and the desired angle. Set-up takes just a few seconds.

Which knives can I use it with?
The angle setter is suitable for most types of knives, including chef's knives, pocket knives, hunting knives and hobby knives. It can be used with all Tormek knife jigs.

Do I need to calibrate the angle setter?
No, the KS-123 is analogue and based on geometric calculations, so it is always accurate and requires no calibration.

Will it fit my Tormek machine?
Yes, it fits all Tormek machines with a universal support, including the Tormek T-8, T-4 and earlier models.
